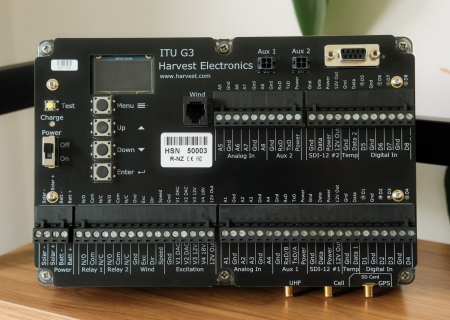

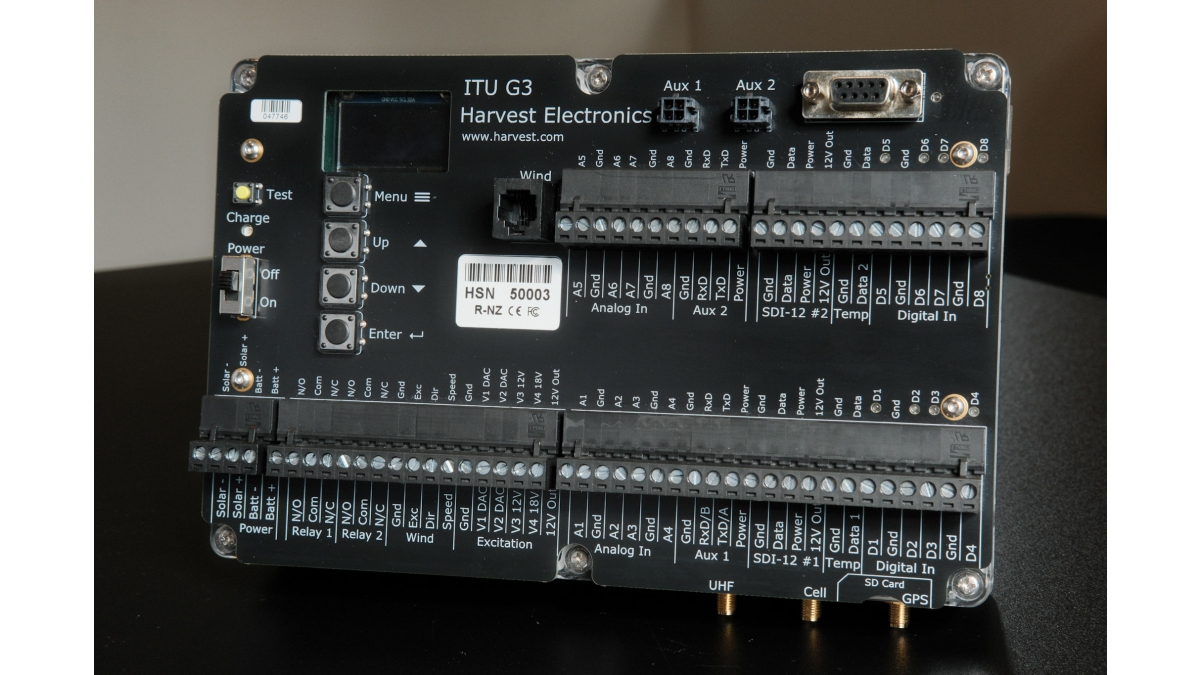

ITU G3

The ITU G3 is our third-generation solar powered data logger and the core of Harvest's fully-equipped remote monitoring and control solutions. It replaces the ITU G2, with more processing power, onboard storage, and protected outputs built for real-world conditions.

Key Features

  • Fully integrated solution, designed and manufactured in New Zealand, with data delivered to our Live Data Portal
  • Configured to your requirements, tested before shipping, and supported remotely by our team, with no programming required
  • Works almost anywhere: 4G cellular, or Iridium satellite for sites without coverage
  • Monitoring and control in one unit: connects to a wide range of Harvest and third-party sensors, with relay outputs controlled remotely or via on-board logic
  • Works with Harvest wireless remotes for multi-point solutions
  • Supports still-image cameras with optional night photos
  • RS-485 hardware ready for future serial integration such as Modbus and NMEA. Talk to us about your requirements.
  • Solar or mains powered with backup battery
  • Stainless steel weatherproof enclosure and mounting, with custom options available



Technical

Inputs

  • Eight analog inputs with software-selectable ranges: 2V, 10V, 40V, or 4-20mA
  • Eight digital inputs with counting capability and programmable edge filtering
  • Two SDI-12 ports, which can sample at different rates
  • Dedicated port for mechanical wind speed and direction sensors
  • Two digital Dallas 1-wire bus inputs for Harvest temperature and combined temperature, humidity, and barometric pressure (THP) sensors

Outputs

  • Two programmable low-voltage relay outputs
  • Four software-configurable DC excitation outputs: two variable 0-20V, one 12V, one boosted 18V
  • 12V DC power output direct from battery, with a self-resetting fuse
  • Overload protection on excitation, SDI-12 and auxiliary power outputs

Communications

  • Built-in 4G cellular or Iridium satellite modem
  • Built-in UHF transreceiver for Harvest wireless remotes
  • Aux 1: RS-232 or RS-485, with 12V or 5V DC power for cameras and serial devices
  • Aux 2: logic-level serial, with 5V DC power

Processing, Storage & Interface

  • Dual processor with 256 log fields
  • On-board flash memory for logging and code updates
  • SD card for additional storage and offline updates
  • Solar battery charger for 12V VRLA batteries
  • OLED display, front panel power switch, charge status LED and digital input activity LEDs
  • Extensive command set for configuration and control

Need a custom configuration or integration? Contact us.
